HMPA-HC2 Sub Channel System
Sub Channel Fixing Systems
HMP Channel systems for cladding onto non-load bearing walls or where there are high projection sizes. By using specially designed channel support and restraint brackets, channels are spanned between floor levels, creating a subframe on which installation is enabled by using set screws and nuts.
- Fixing to sub-channel structure which is attached to load-bearing beams.
- High load-bearing capability to fit projection sizes up to 360 mm.
- Greater projection sizes are achieved with a special design.
- Fully adjustable and allows fast installation.
- Lower anchoring points are achieved therefore decreasing the level of cold bridging.
HMPC-HC1 Channel Fixing System
HMPC C Channels are fixed onto concrete beams with HCSP1 channel support brackets. HMPA channels are restrained with HCSP1 restraining brackets to prevent buckling. The dead load is distributed equally onto the supporting HCSP1 brackets. In this particular example, installation is made at horizontal joints.
Indirect fixing at vertical joint with HMPA-HC2 system
HMPA-HC2 Channel Fixing System
HMPA Channels are supported on to upper concrete beams with HCSP2 support brackets. The dead load is transferred to the upper support bracket. HMPA Channels are restrained to the wall with HCRS2 restraining brackets which secure the channels against wind loads and buckling. In this example, installation is made at vertical joints. In this system, adjustability is enabled on three dimensions.
Indirect fixing at horizontal joints with HMPC-HC1H system
HMPC-HC1H Channel Fixing System

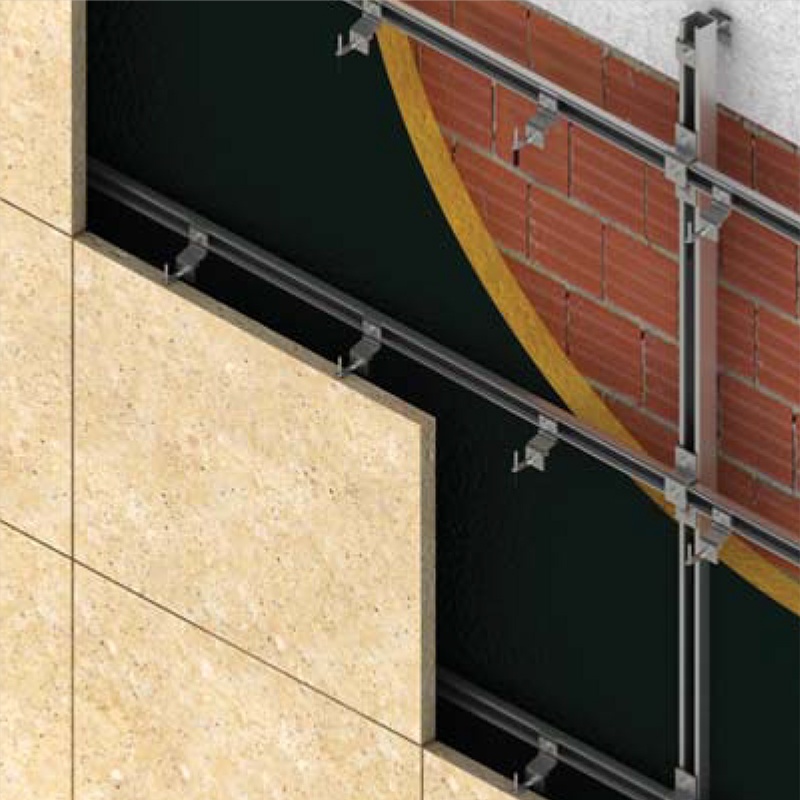

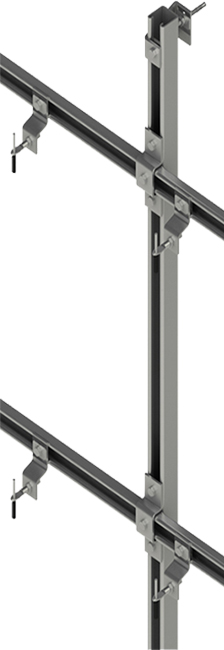

HMPC 41/41 and HMPC 41/21 C channels are assembled vertically and horizontally to form a grid where higher lateral adjustability is achieved. Channels are connected to each other with HC channel connection elements. HZ01 Z anchors are positioned at desired points along the horizontally placed HMPC C channel to meet the pinholes on the stone panels.
